Alkaline Ionized Water Electrolysis System

A small amount of electrolyte is added to water and processed through patented electrolysis technology to produce electrolyzed water.

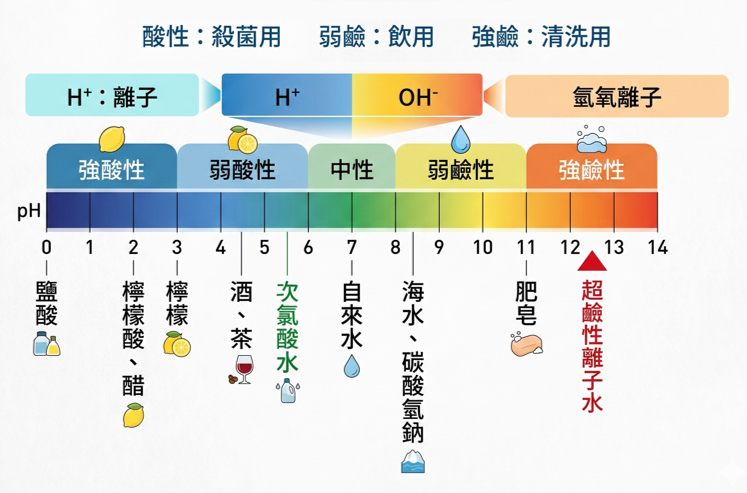

Highly alkaline ionized water

Newly developed electrolyzed water generation equipment created through technical cooperation between TJI and a Japanese technology partner.
Produces alkaline ionized water with a pH of 12.5 using only purified water and potassium carbonate.
Contains no surfactants and provides cooling, lubrication, rust prevention and antimicrobial performance.
Suitable for a wide range of applications, helping various industries improve efficiency, reduce costs and support sustainable operations.

Degreasing and Cleaning: Penetrates gaps between contaminants to remove dirt and grease, making it suitable for cleaning factory environments and equipment.
Environmentally Friendly: Contains no surfactants and allows wastewater to be treated and recycled more easily.
Penetrating and Cooling: Strong penetration performance supports effective heat dissipation and cooling.
Lubrication and Rust Prevention: High lubricity improves machining efficiency and extends tool life, while a protective film forms on metal surfaces to help prevent rust.
Antimicrobial and Deodorizing: Helps inhibit bacterial growth and unpleasant odors, reduces deterioration of cutting fluids, extends service life and reduces replacement frequency.
User-Friendly: Gentle on the hands and less likely to cause irritation or allergic reactions.
Multiple Applications: Suitable as an alternative to cutting fluids, alkaline cleaning agents and circulating water, with a storage life of more than one year.

Environmentally Friendly: Composed of 99.8% water, free from surfactants, environmentally friendly and suitable for safe handling.
Cleaning and Degreasing: Strong degreasing performance without foaming, helping reduce water consumption during cleaning.
Antimicrobial Performance: Helps inhibit the growth of microorganisms such as E. coli, Salmonella, Staphylococcus aureus, mold and influenza viruses, combining cleaning and sanitizing in one process.
Cooling: Low surface tension and strong penetration enable rapid heat dissipation.
Rust Prevention: An extremely low oxidation-reduction potential, or ORP, helps form a passive protective film on metal surfaces.

Cleaning and Degreasing	Strong degreasing performance without foaming, helping reduce water consumption during cleaning.
Air-Conditioning Cooling Tower Application	Tap water: green algae appeared after one month. Alkaline ionized water: water quality remained normal.
Rust Prevention	In a seven-day iron plate immersion test, the low oxidation potential helped form a protective surface film and maintain the appearance of the metal.
Cooling	Low surface tension and strong penetration performance.

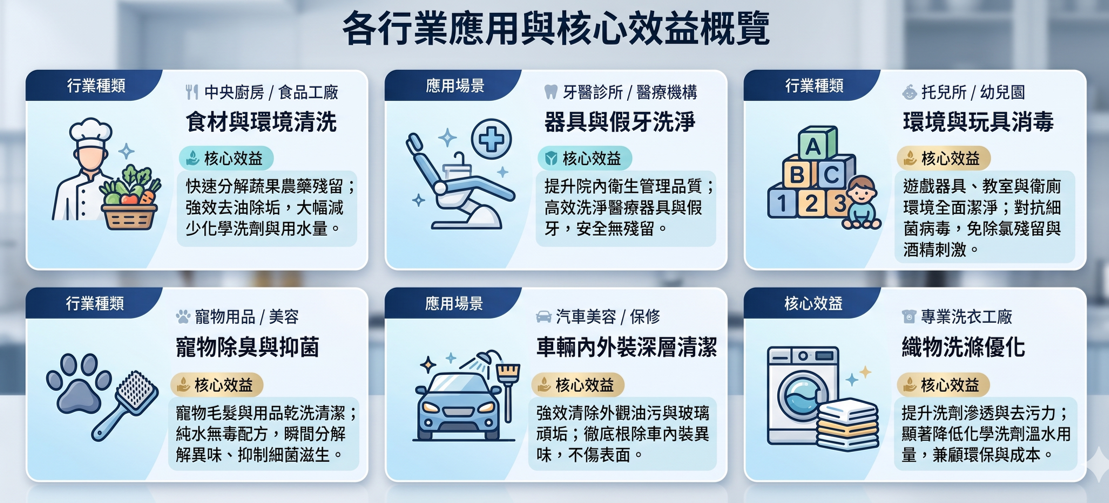

Multiple Applications

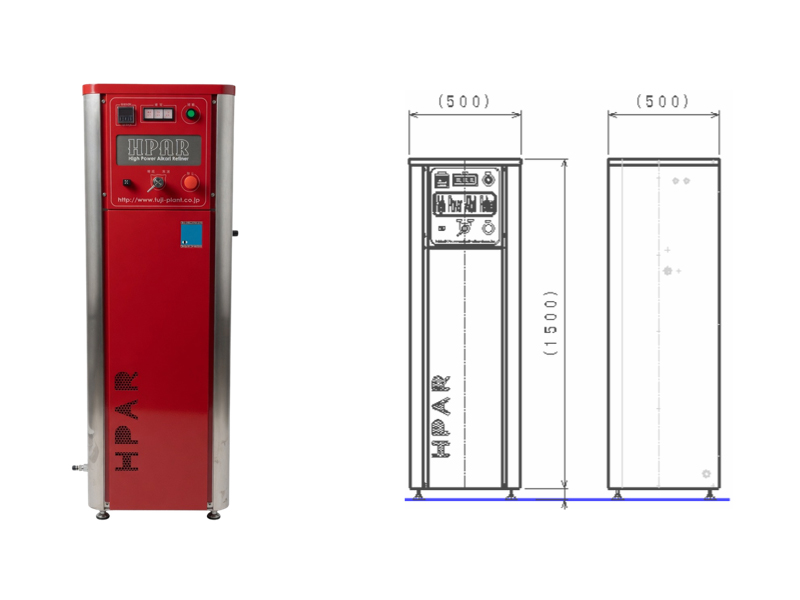

HPAR-36B alkaline ionized water generator

36 L/hour

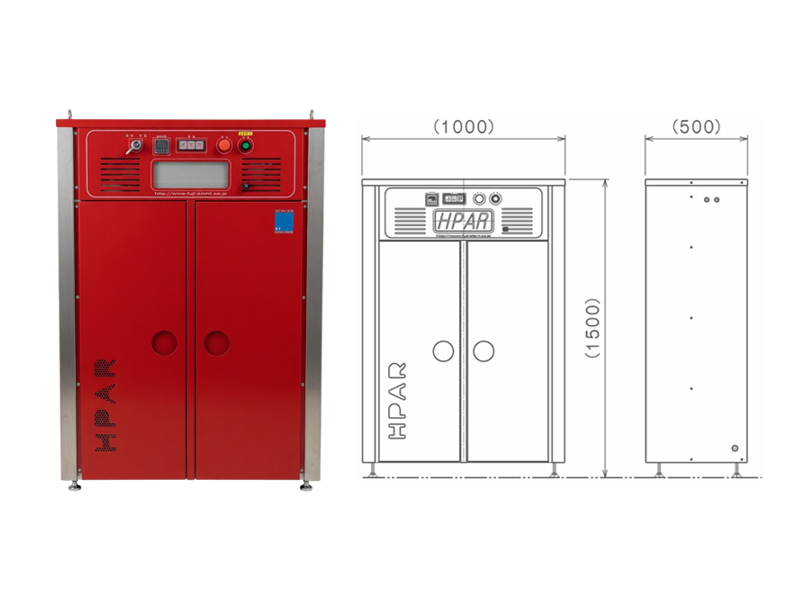

HPAR-120B alkaline ionized water generator

120 L/hour

Specification	HPAR-36B	HPAR-120B
Production Capacity	36 L/hour	120 L/hour
Output Water Quality	pH 12.0–12.5	pH 12.0–13.2
Equipment Dimensions (mm)	500 × 500 × 1500	1000 × 500 × 1500
Feed Water	RO water
Feed Water Temperature	15–35°C
Feed Water Pressure	0.1–0.5 MPa
Ambient Temperature	10–30°C
Electrolyte	Food-grade potassium carbonate
Power Supply	Single-phase AC 200 V
Product Name	Highly Alkaline Ionized Water Generator
Technical Cooperation	Technical cooperation with Japan
Product Features	Stable performance, high output and simple operation

Target pH	Theoretical Dilution	Recommended Ratio (Concentrate : Water)	Example for Preparing 1 L / 1,000 mL
pH 12.5	5×	1 : 4	Use 200 mL of concentrate and add water to a total volume of 1,000 mL.
pH 12.0	16×	1 : 15	Use 63 mL of concentrate and add water to a total volume of 1,000 mL.
pH 11.5	50×	1 : 49	Use 20 mL of concentrate and add water to a total volume of 1,000 mL.
pH 11.0	158×	1 : 157	Use 6.3 mL of concentrate and add water to a total volume of 1,000 mL.
pH 10.5	501×	1 : 500	Use 2.0 mL of concentrate and add water to a total volume of 1,000 mL.
